Instrumentation Cables


We have specialization in Manufacturing various types of Instrumentation Cables such as pair, Tried, Individual etc. With over all Alluminium Polyester Tape and ATC drain having Tin-copper bridging, these wires are available in armoured as well as unarmoured cables. These Cables facilitate smooth communication of Low Level Signal from Electronics transmitters.
Instrumentation Cables
Construction - Cores, pairs, triads or quads,

Voltage Grade - Up to 1100 V

Conductor - Electrolytic grade copper Bare / Tinned Solid / Stranded/Flexible conductors

Range - 0.5 / 0.75 / 1.0 / 1.5 / 2.5 Sq mm up to 48 Pair

Primary Insulation - General purpose PVC / Heat Resistant PVC / LDPE / XLPE / PTFE / Fibre Glass / FEP / Silicone Rubber

Screening - Individual and/or overall with following options - - Aluminum Mylar/Copper Tape with Tinned Copper Drain Wire or - Braided with Bare or Tinned or Nickel Plated or Silver Plated Copper

Inner Sheath - PVC / HRPVC / FRPVC / FRLS PVC / ZHFR / LSF

Armouring - GI round Wire / Flat strip or Wire Braiding

Outer Sheath - PVC / HRPVC / FRPVC / FRLS PVC / ZHFR / LSF Rip Cord - For easy removal of sheath

Standards - BS-5308 Part-1 & 2, BS-7655, IEC-189 (1 & 2), VDE-0815 & 0816 and BS EN 50288

Additional Features - Communication pairs, Bi-colour extrusion

Note:- These cables are also designed as Data/Analogue cables.

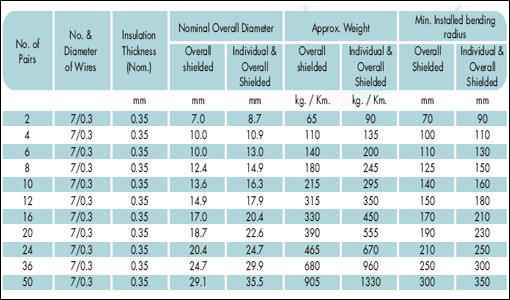

Technical Data
